FAI-DETR (FocoosAI Detection Transformer)

Overview

FAI-DETR is an advanced object detection model based on the RT-DETR (Detection Transformer) architecture, optimized by FocoosAI for efficient and accurate object detection tasks. This model eliminates the need for hand-crafted components like non-maximum suppression (NMS) and anchor generation by using a transformer-based approach with learnable object queries.

The model employs a set-based global loss through bipartite matching and a transformer encoder-decoder architecture that directly predicts bounding boxes and class labels. This end-to-end approach simplifies the detection pipeline while achieving competitive performance.

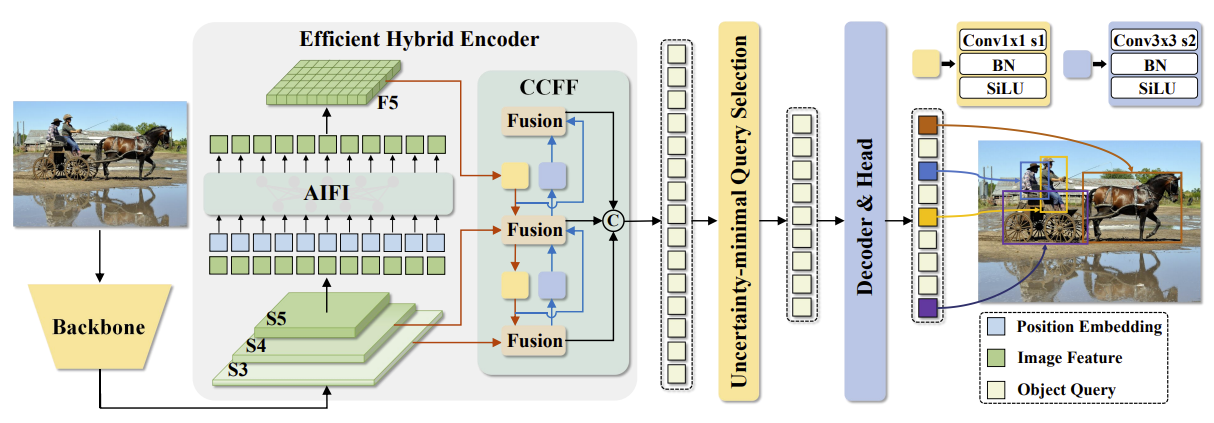

Neural Network Architecture

The FAI-DETR architecture consists of four main components:

Backbone

• Purpose: Feature extraction from input images
• Design: Configurable backbone network (ResNet, STDC, etc.)
• Output: Multi-scale features at different resolutions
• Integration: Features are processed through the encoder for global context

Encoder

• Architecture: Transformer encoder with multi-scale deformable attention
• Components:
• Multi-scale deformable self-attention layers
• Position embeddings (sine-based)
• Feed-forward networks (FFN)
• CSPRep layers for efficient feature processing
• Features: Processes multi-scale features to capture global context
• Layers: Configurable number of encoder layers (default: 1)

Decoder

• Architecture: Multi-scale deformable transformer decoder
• Components:
• Self-attention layers for query interaction
• Cross-attention layers with deformable attention
• Feed-forward networks
• Reference point refinement
• Queries: 300 learnable object queries (configurable)
• Layers: Configurable number of decoder layers (default: 6)

Detection Head

• Classification Head: Predicts class probabilities for each query
• Regression Head: Predicts bounding box coordinates (center, width, height)
• Output Format: Direct box predictions without anchors or post-processing

Configuration Parameters

Core Model Parameters

• num_classes (int): Number of object detection classes
• num_queries (int, default=300): Number of learnable object queries
• backbone_config (BackboneConfig): Backbone network configuration

Encoder Configuration

• pixel_decoder_out_dim (int, default=256): Encoder output dimension
• pixel_decoder_feat_dim (int, default=256): Encoder feature dimension
• pixel_decoder_num_encoder_layers (int, default=1): Number of encoder layers
• pixel_decoder_expansion (float, default=1.0): Channel expansion ratio
• pixel_decoder_dim_feedforward (int, default=1024): FFN dimension
• pixel_decoder_dropout (float, default=0.0): Dropout rate
• pixel_decoder_nhead (int, default=8): Number of attention heads

Decoder Configuration

• transformer_predictor_hidden_dim (int, default=256): Decoder hidden dimension
• transformer_predictor_dec_layers (int, default=6): Number of decoder layers
• transformer_predictor_dim_feedforward (int, default=1024): FFN dimension
• transformer_predictor_nhead (int, default=8): Number of attention heads
• transformer_predictor_out_dim (int, default=256): Decoder output dimension
• head_out_dim (int, default=256): Detection head output dimension

Inference Configuration

• threshold (float, default=0.5): Confidence threshold for detections
• top_k (int, default=300): Maximum number of detections to return

Supported Tasks

Object Detection

• Output: Bounding boxes with class labels and confidence scores
• Use Cases:
• General object detection in natural images
• Autonomous driving (vehicle, pedestrian detection)
• Surveillance and security applications
• Industrial quality control
• Medical image analysis
• Performance: End-to-end detection without NMS post-processing

Model Outputs

Internal Output (DETRModelOutput)

• boxes (torch.Tensor): Shape [B, num_queries, 4] - Bounding boxes in XYXY format normalized to [0, 1]
• logits (torch.Tensor): Shape [B, num_queries, num_classes] - Class predictions
• loss (Optional[dict]): Training losses including:
  • loss_vfl: Varifocal loss for classification
  • loss_bbox: L1 loss for bounding box regression
  • loss_giou: Generalized IoU loss for box alignment

Inference Output (FocoosDetections)

For each detected object:

• bbox (List[float]): Bounding box coordinates [x1, y1, x2, y2]
• conf (float): Confidence score
• cls_id (int): Class identifier
• label (Optional[str]): Human-readable class name

Losses

The model employs three main loss components:

1. Varifocal Loss (loss_vfl):
2. Advanced focal loss variant for classification
3. Handles foreground-background imbalance

4. Joint optimization of classification and localization quality

5. Bounding Box Loss (loss_bbox):

6. L1 loss for direct coordinate regression

7. Normalized coordinates for scale invariance

8. Generalized IoU Loss (loss_giou):

9. Shape-aware bounding box loss
10. Better gradient flow for overlapping boxes
11. Improved localization accuracy

Available Models

Currently, you can find 3 fai-detr models on the Focoos Hub, 2 trained on COCO and one trained on Object365

Model Name	Architecture	Domain (Classes)	Dataset	Metric	FPS Nvidia-T4
fai-detr-l-coco	RT-DETR (Resnet-50)	Common Objects (80)	COCO	bbox/AP: 53.06 bbox/AP50: 70.91	87
fai-detr-m-coco	RT-DETR (STDC-2)	Common Objects (80)	COCO	bbox/AP: 44.69 bbox/AP50: 61.63	181
fai-detr-l-obj365	RT-DETR (Resnet50)	Common Objects (365)	Objects365	bbox/AP: 34.60 bbox/AP50: 45.81	87

Example Usage

Quick Start with Pre-trained Model

from focoos.model_manager import ModelManager

# Load a pre-trained model
model = ModelManager.get("fai-detr-m-coco")

# Run inference on an image
image = Image.open("path/to/image.jpg")
result = model(image)

# Process results
for detection in result.detections:
    print(f"Class: {detection.label}, Confidence: {detection.conf:.3f}")

Custom Model Configuration

from focoos.models.fai_detr.config import DETRConfig
from focoos.models.fai_detr.modelling import FAIDetr
from focoos.nn.backbone.stdc import STDCConfig

# Configure the backbone
backbone_config = STDCConfig(
    model_type="stdc",
    use_pretrained=True,
)

# Configure the model
config = DETRConfig(
    backbone_config=backbone_config,
    num_classes=80,
    num_queries=300,
    transformer_predictor_dec_layers=3,
    threshold=0.5,
)

# Create the model
model = FAIDetr(config)
